Flashing Tuya WT5 dimmer with openbeken
Here is a flashing adventure for WT5 dimmers with opensource OpenBeken firmware.
preparation
Will flash openbeken firmware which is similar to Tasmota, but for chips used in Tuya devices. Got OpenBK7231N_QIO_1.17.451.bin.
I’ve found two flashers:
- python script https://github.com/OpenBekenIOT/hid_download_py

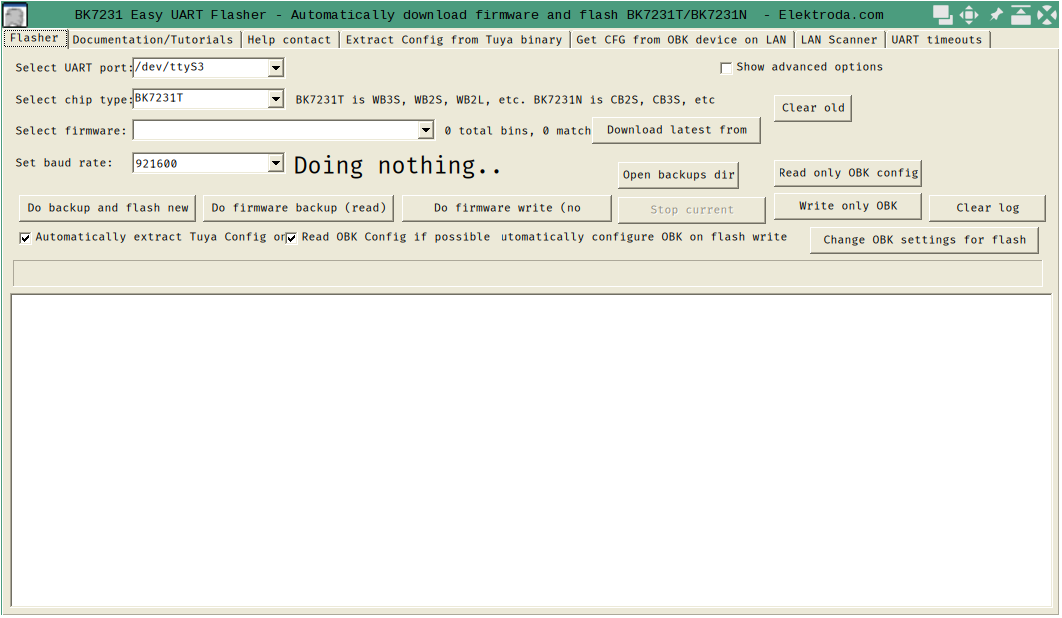

- gui app https://github.com/openshwprojects/BK7231GUIFlashTool
Here I would use python script, but I have also built a GUI.
Preparing tools.
console flasher
Initialize virtualenv for python flasher and install it.
Full log
~/projects/src/github.com/OpenBekenIOT/hid_download_py λ python3 -m venv .venv ✖ 2 ~/projects/src/github.com/OpenBekenIOT/hid_download_py λ source ./.venv/bin/activate.fish (3s 381ms) (.venv) ~/projects/src/github.com/OpenBekenIOT/hid_download_py λ pip install -r requirements.txt Collecting hid (from -r requirements.txt (line 1)) Using cached hid-1.0.5-py3-none-any.whl Collecting pyserial (from -r requirements.txt (line 2)) Using cached pyserial-3.5-py2.py3-none-any.whl (90 kB) Collecting tqdm (from -r requirements.txt (line 3)) Obtaining dependency information for tqdm from https://files.pythonhosted.org/packages/00/e5/f12a80907d0884e6dff9c16d0c0114d81b8cd07dc3ae54c5e962cc83037e/tqdm-4.66.1-py3-none-any.whl.metadata Using cached tqdm-4.66.1-py3-none-any.whl.metadata (57 kB) Using cached tqdm-4.66.1-py3-none-any.whl (78 kB) Installing collected packages: pyserial, hid, tqdm Successfully installed hid-1.0.5 pyserial-3.5 tqdm-4.66.1 [notice] A new release of pip is available: 23.2.1 -> 24.0 [notice] To update, run: pip install --upgrade pip (.venv) ~/projects/src/github.com/OpenBekenIOT/hid_download_py λ pip install . (836ms) Processing /home/user/projects/src/github.com/OpenBekenIOT/hid_download_py Installing build dependencies ... done Getting requirements to build wheel ... done Preparing metadata (pyproject.toml) ... done Building wheels for collected packages: hid_downloader Building wheel for hid_downloader (pyproject.toml) ... done Created wheel for hid_downloader: filename=hid_downloader-1.0-py3-none-any.whl size=27196 sha256=863b8b7d4cefd01dc50c74d31c9576f1f0e4078f3677e11e2f280caf0aafb52d Stored in directory: /tmp/pip-ephem-wheel-cache-fiitn79r/wheels/da/26/d2/3d735db9f06e1e2d04f0d162ae3c73c5b255d462e0c372acee Successfully built hid_downloader Installing collected packages: hid_downloader Successfully installed hid_downloader-1.0 [notice] A new release of pip is available: 23.2.1 -> 24.0 [notice] To update, run: pip install --upgrade pip
Script uartprogram should work now.
gui flasher
This flasher written in C# and could be built with Mono under Linux.
Full log
~/projects/src/github.com/openshwprojects/BK7231GUIFlashTool λ xbuild >>>> xbuild tool is deprecated and will be removed in future updates, use msbuild instead <<<< XBuild Engine Version 14.0 Mono, Version 6.12.0.182 Copyright (C) 2005-2013 Various Mono authors Build started 2/5/2024 11:04:12 PM. __________________________________________________ /home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher.sln: warning : Don't know how to handle GlobalSection ExtensibilityGlobals, Ignoring. Project "/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher.sln" (default target(s)): Target ValidateSolutionConfiguration: Building solution configuration "Debug|Any CPU". Target Build: Project "/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/BK7231Flasher.csproj" (default target(s)): Target PrepareForBuild: Configuration: Debug Platform: AnyCPU Created directory "bin/Debug/" Created directory "obj/Debug/" Target CopyFilesMarkedCopyLocal: Copying file from '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/packages/Newtonsoft.Json.13.0.3/lib/net35/Newtonsoft.Json.dll' to '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/bin/Debug/Newtonsoft.Json.dll' Target GenerateResources: Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormDownloader.resx,obj/Debug/BK7231Flasher.FormDownloader.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormExtractedConfig.resx,obj/Debug/BK7231Flasher.FormExtractedConfig.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormMain.resx,obj/Debug/BK7231Flasher.FormMain.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormOBKConfig.resx,obj/Debug/BK7231Flasher.FormOBKConfig.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormPin.resx,obj/Debug/BK7231Flasher.FormPin.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "FormPrompt.resx,obj/Debug/BK7231Flasher.FormPrompt.resources" Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/resgen.exe execution started with arguments: /useSourcePath /compile "Properties/Resources.resx,obj/Debug/BK7231Flasher.Properties.Resources.resources" Target GenerateSatelliteAssemblies: No input files were specified for target GenerateSatelliteAssemblies, skipping. Target CoreCompile: Tool /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/4.5/csc.exe execution started with arguments: /noconfig /debug:full /debug:portable /optimize- /out:obj/Debug/BK7231Flasher.exe /resource:obj/Debug/BK7231Flasher.FormDownloader.resources /resource:obj/Debug/BK7231Flasher.FormExtractedConfig.resources /resource:obj/Debug/BK7231Flasher.FormMain.resources /resource:obj/Debug/BK7231Flasher.FormOBKConfig.resources /resource:obj/Debug/BK7231Flasher.FormPin.resources /resource:obj/Debug/BK7231Flasher.FormPrompt.resources /resource:obj/Debug/BK7231Flasher.Properties.Resources.resources BitUtils.cs BK7231Flasher.cs BKFlashList.cs Colors.cs ConfigBase.cs CRC.cs FormDownloader.cs FormDownloader.Designer.cs FormExtractedConfig.cs FormExtractedConfig.Designer.cs FormMain.cs FormMain.Designer.cs FormMain_Net_Scanner.cs FormMain_Net_SingleDevice.cs FormMain_TuyaConfigExtractor.cs FormOBKConfig.cs FormOBKConfig.Designer.cs FormPin.cs FormPin.Designer.cs FormPrompt.cs FormPrompt.Designer.cs ILogListener.cs MiscUtils.cs ModifyProgressBarColor.cs MySettings.cs OBKConfig.cs OBKDeviceAPI.cs OBKFlags.cs OBKFlashLayout.cs OBKMassBackup.cs OBKRoles.cs OBKScanner.cs Program.cs Properties/AssemblyInfo.cs Rand.cs RequiredLibrariesCheck.cs TuyaConfig.cs RFPartitionUtil.cs RichTextUtil.cs SecurityProtocolTypeExtensions.cs TuyaModules.cs Properties/Resources.Designer.cs Properties/Settings.Designer.cs /target:winexe /win32icon:bk_icon.ico /define:"DEBUG;TRACE" /nostdlib /platform:AnyCPU /reference:../packages/Newtonsoft.Json.13.0.3/lib/net35/Newtonsoft.Json.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Data.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/gac/System.Deployment/4.0.0.0__b03f5f7f11d50a3a/System.Deployment.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Drawing.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Net.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Windows.Forms.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Xml.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api/System.Core.dll /reference:/nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/2.0-api//mscorlib.dll /warn:4 Microsoft (R) Visual C# Compiler version 3.9.0-6.21124.20 (db94f4cc) Copyright (C) Microsoft Corporation. All rights reserved. FormMain.cs(170,17): warning CS0162: Unreachable code detected FormMain.cs(161,29): warning CS0168: The variable 'ex' is declared but never used FormPin.cs(46,29): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(44,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(279,29): warning CS0168: The variable 'ex' is declared but never used BK7231Flasher.cs(371,30): warning CS0168: The variable 'ex' is declared but never used OBKFlashLayout.cs(38,29): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(171,21): warning CS0162: Unreachable code detected BK7231Flasher.cs(493,37): warning CS0168: The variable 'ex' is declared but never used TuyaConfig.cs(149,30): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(336,29): warning CS0168: The variable 'ex' is declared but never used OBKDeviceAPI.cs(443,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(696,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(742,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(828,13): warning CS0162: Unreachable code detected FormMain.cs(843,13): warning CS0162: Unreachable code detected FormMain.cs(941,29): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(1233,30): warning CS0168: The variable 'ex' is declared but never used BK7231Flasher.cs(31,14): warning CS0649: Field 'BK7231Flasher.bDebugUART' is never assigned to, and will always have its default value false Target _CopyAppConfigFile: Copying file from '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/app.config' to '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/bin/Debug/BK7231Flasher.exe.config' Target DeployOutputFiles: Copying file from '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/obj/Debug/BK7231Flasher.pdb' to '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/bin/Debug/BK7231Flasher.pdb' Copying file from '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/obj/Debug/BK7231Flasher.exe' to '/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/bin/Debug/BK7231Flasher.exe' Done building project "/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/BK7231Flasher.csproj". Done building project "/home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher.sln". Build succeeded. Warnings: /home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher.sln: warning : Don't know how to handle GlobalSection ExtensibilityGlobals, Ignoring. /home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher.sln (default targets) -> (Build target) -> /home/user/projects/src/github.com/openshwprojects/BK7231GUIFlashTool/BK7231Flasher/BK7231Flasher.csproj (default targets) -> /nix/store/3y3gbf12dg4wz4lqn4qjjnr4bz79cm74-mono-6.12.0.182/lib/mono/xbuild/14.0/bin/Microsoft.CSharp.targets (CoreCompile target) -> FormMain.cs(170,17): warning CS0162: Unreachable code detected FormMain.cs(161,29): warning CS0168: The variable 'ex' is declared but never used FormPin.cs(46,29): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(44,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(279,29): warning CS0168: The variable 'ex' is declared but never used BK7231Flasher.cs(371,30): warning CS0168: The variable 'ex' is declared but never used OBKFlashLayout.cs(38,29): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(171,21): warning CS0162: Unreachable code detected BK7231Flasher.cs(493,37): warning CS0168: The variable 'ex' is declared but never used TuyaConfig.cs(149,30): warning CS0168: The variable 'ex' is declared but never used FormOBKConfig.cs(336,29): warning CS0168: The variable 'ex' is declared but never used OBKDeviceAPI.cs(443,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(696,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(742,30): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(828,13): warning CS0162: Unreachable code detected FormMain.cs(843,13): warning CS0162: Unreachable code detected FormMain.cs(941,29): warning CS0168: The variable 'ex' is declared but never used FormMain.cs(1233,30): warning CS0168: The variable 'ex' is declared but never used BK7231Flasher.cs(31,14): warning CS0649: Field 'BK7231Flasher.bDebugUART' is never assigned to, and will always have its default value false 20 Warning(s) 0 Error(s) Time Elapsed 00:00:02.9161710 ~/projects/src/github.com/openshwprojects/BK7231GUIFlashTool λ ls -la BK7231Flasher/bin/Debug/ (3s 96ms) .rw-r--r-- 271k user 5 Feb 23:04 BK7231Flasher.exe .rw-r--r-- 134 user 5 Feb 23:01 BK7231Flasher.exe.config .rw-r--r-- 74k user 5 Feb 23:04 BK7231Flasher.pdb .rw-r--r-- 516k user 5 Feb 23:01 Newtonsoft.Json.dll ~/projects/src/github.com/openshwprojects/BK7231GUIFlashTool λ mono --version Mono JIT compiler version 6.12.0.182 (tarball Mon Jan 22 11:28:14 UTC 2024) Copyright (C) 2002-2014 Novell, Inc, Xamarin Inc and Contributors. www.mono-project.com TLS: __thread SIGSEGV: altstack Notifications: epoll Architecture: amd64 Disabled: none Misc: softdebug Interpreter: yes LLVM: supported, not enabled. Suspend: hybrid GC: sgen (concurrent by default) ~/projects/src/github.com/openshwprojects/BK7231GUIFlashTool λ xbuild --version >>>> xbuild tool is deprecated and will be removed in future updates, use msbuild instead <<<< XBuild Engine Version 14.0 Mono, Version 6.12.0.182 Copyright (C) 2005-2013 Various Mono authors MSBUILD: error MSBUILD0000: Project file '--version' not found.
Now it should be runnable with mono ./BK7231Flasher/bin/Debug/BK7231Flasher.exe.
flashing chip
Well, to be honest, we are not flashing cb3s chip, which is just a wireless communication chip, we are using it to access BK7231 serial.

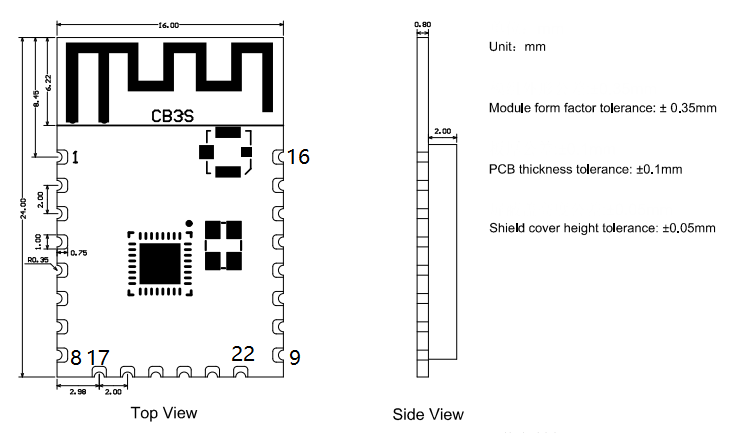

here is pinout from https://developer.tuya.com/en/docs/iot/cb3s?id=Kai94mec0s076
Pins we would connect UART to:
VCC8GND9RXD115TXD116

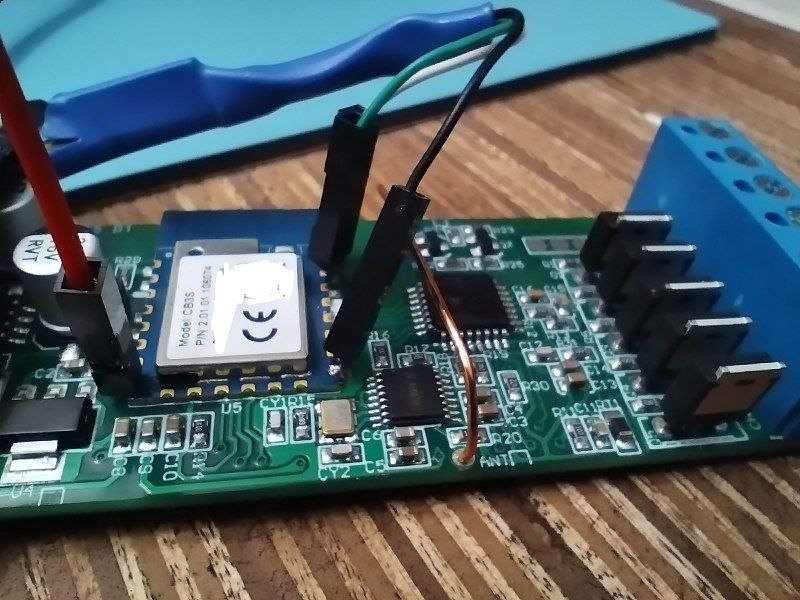

I have soldered thin copper wires to this pins & connected my USB UART.
Somebody from community got a nice video which shows what to do https://www.youtube.com/watch?v=F1hV6AIMZXU
In my case flashing went smoothly, I’ve need to reboot device for a few times rerunning uartprogram.

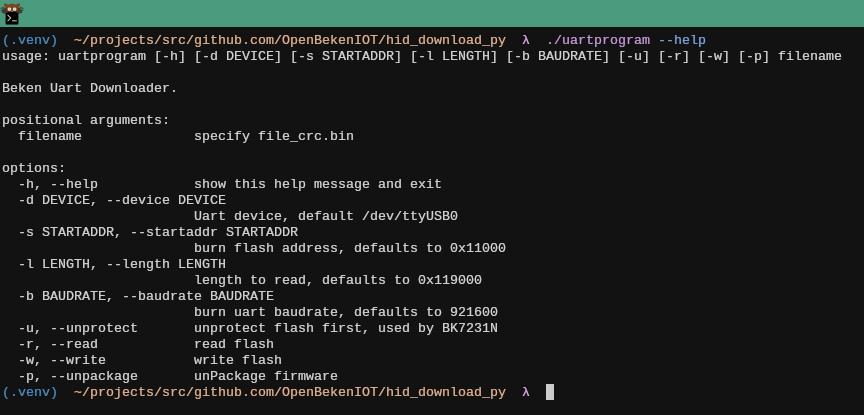

(.venv) ~/projects/src/github.com/OpenBekenIOT/hid_download_py λ uartprogram OpenBK7231N_QIO_1.17.451.bin -d /dev/ttyUSB0 -w -u -s 0x0 UartDownloader.... programm.... Write Successful: |##################################################|[ 15.3k/s]
After that OpenBK7231N_REDACTED open network appeared. Device web interface is at http://192.168.4.1
secure way to configure wifi network
I have discovered serial command interface is not working. I don’t like the idea of filling in wifi network password using unprotected network (this is horrible idea).
More information
Startup script was:
startDriver TuyaMCU tuyaMcu_setBaudRate 115200 SetFlag 31 1 logPort 1
Connected to UART using:
picocom /dev/ttyUSB0 --baud 115200 --parity n --databits 8 --stopbits 1 --omap crcrlf
- input was echoed to me (which is expected)
- all commands ignored
- have tried different
omap’s without success
So, we will try to build firmware with hardcoded ssid & password.
TL;DR modified default configuration, but haven’t found any way to reset previously saved configuration on device, so flashed firmware which enforced default configuration then reflashed original firmware.
Boring details
Let’s prepare build environment:
~/projects/src/github.com/openshwprojects/OpenBK7231T_App λ cd docker/ (3m 27s 871ms) ~/projects/src/github.com/openshwprojects/OpenBK7231T_App/docker λ sudo docker build -t openbk_build --build-arg USERNAME=$USER . [sudo] password for user: [+] Building 182.5s (12/12) FINISHED docker:default => [internal] load build definition from Dockerfile 0.1s => => transferring dockerfile: 764B 0.0s => [internal] load .dockerignore 0.1s => => transferring context: 2B 0.0s => [internal] load metadata for docker.io/library/ubuntu:20.04 2.7s => [1/7] FROM docker.io/library/ubuntu:20.04@sha256:bb1c41682308d7040f74d103022816d41c50d7b0c89e9d706a74b4e548636e54 4.2s => => resolve docker.io/library/ubuntu:20.04@sha256:bb1c41682308d7040f74d103022816d41c50d7b0c89e9d706a74b4e548636e54 0.0s => => sha256:18ca3f4297e795532c0d053ba443d392d5d316ee83ddee0de27f1e742a7db273 2.30kB / 2.30kB 0.0s => => sha256:8ee0874247356ecb5ea92128219660506b139dcb6cc45dcab84d98b3c6485061 27.51MB / 27.51MB 2.8s => => sha256:bb1c41682308d7040f74d103022816d41c50d7b0c89e9d706a74b4e548636e54 1.13kB / 1.13kB 0.0s => => sha256:a4fab1802f08df089c4b2e0a1c8f1a06f573bd1775687d07fef4076d3a2e4900 424B / 424B 0.0s => => extracting sha256:8ee0874247356ecb5ea92128219660506b139dcb6cc45dcab84d98b3c6485061 1.1s => [internal] load build context 0.1s => => transferring context: 1.58kB 0.0s => [2/7] RUN dpkg --add-architecture i386 && apt-get update && apt-get upgrade -y && apt-get install -y wget git python3 python-is-python3 python3-pip libc6-i386 make build-essential cmake gcc-arm-none-eabi 159.1s => [3/7] RUN pip3 install pycryptodomex configobj toml fdt 3.3s => [4/7] RUN useradd -m -s /bin/bash user 0.5s => [5/7] COPY build_target_platforms.sh /build_target_platforms.sh 0.2s => [6/7] RUN chmod 775 /build_target_platforms.sh 0.3s => [7/7] RUN mkdir -p /${OpenBK7231T_App} && chown user /${OpenBK7231T_App} 0.4s => exporting to image 11.5s => => exporting layers 11.4s => => writing image sha256:924ddc798bc8af58a97aacf638eb7e82f454700043e18f5fd70a49e4caf48d60 0.0s => => naming to docker.io/library/openbk_build
Prepare patch with wifi credentials written to default configuration:
diff --git src/new_cfg.c src/new_cfg.c index d89bb19d..89a2d06b 100644 --- src/new_cfg.c +++ src/new_cfg.c @@ -122,9 +122,10 @@ void CFG_SetDefaultConfig() { // g_cfg.mqtt_clientId is set as shortDeviceName below strcpy(g_cfg.mqtt_userName, "homeassistant"); strcpy(g_cfg.mqtt_pass, "qqqqqqqqqq"); - // already zeroed but just to remember, open AP by default - g_cfg.wifi_ssid[0] = 0; - g_cfg.wifi_pass[0] = 0; + + strcpy(g_cfg.wifi_ssid, "REDACTED"); + strcpy(g_cfg.wifi_pass, "REDACTED"); + // i am not sure about this, because some platforms might have no way to store mac outside our cfg? memcpy(g_cfg.mac,mac,6); strcpy(g_cfg.webappRoot, "https://openbekeniot.github.io/webapp/");
Run the build environment:
~/projects/src/github.com/openshwprojects/OpenBK7231T_App/docker λ sudo docker run --env TARGET_SDKS=OpenBK7231N -it -v "$(pwd)/..":/OpenBK7231T_App openbk_build ✖ 130 (39s 969ms) /build_target_platforms.sh: line 3: shell: command not found **************************************** **************************************** Building OpenBeken for the following platforms: OpenBK7231N Building OpenBeken with version "dev_20240206_044539" **************************************** Building platform: OpenBK7231N **************************************** make -C sdk/OpenBK7231T/platforms/bk7231t/bk7231t_os APP_BIN_NAME=OpenBK7231T_App USER_SW_VER=dev_20240206_044539 clean make[1]: *** sdk/OpenBK7231T/platforms/bk7231t/bk7231t_os: No such file or directory. Stop. make: *** [Makefile:153: clean] Error 2 make APP_NAME=OpenBK7231N TARGET_PLATFORM=bk7231n SDK_PATH=sdk/OpenBK7231N APPS_BUILD_PATH=../bk7231n_os build-BK7231 make[1]: Entering directory '/OpenBK7231T_App' git submodule update --init --recursive --remote Cloning into '/OpenBK7231T_App/sdk/OpenBK7231N'... Cloning into '/OpenBK7231T_App/sdk/OpenBK7231T'... Cloning into '/OpenBK7231T_App/sdk/OpenBL602'... Cloning into '/OpenBK7231T_App/sdk/OpenLN882H'... Cloning into '/OpenBK7231T_App/sdk/OpenW600'... Cloning into '/OpenBK7231T_App/sdk/OpenW800'... Cloning into '/OpenBK7231T_App/sdk/OpenXR809'... Submodule path 'sdk/OpenBK7231N': checked out '244bdfe86a1dd4324038814f3ebb8ebb24117dfb' Submodule path 'sdk/OpenBK7231T': checked out '12c68122b61da686df8b77a6577857ac05b55cbf' Submodule path 'sdk/OpenBL602': checked out 'e5769160cfc91a5fe36f040b3d5314e51eda3a28' Submodule path 'sdk/OpenLN882H': checked out '50761b5a505bd04b23fba6d5c7a77b05330beaf9' Submodule path 'sdk/OpenW600': checked out 'ad8f51d064a78465ec1845287cf19c3a24c655b8' Submodule path 'sdk/OpenW800': checked out 'bc2c41e0271f1018bdb66cebddf592de7b7a571d' Submodule path 'sdk/OpenXR809': checked out '3e8cd2f98075aa89bb1fbafd7871a8bb61360612' Create symlink for OpenBK7231N into sdk folder ln -s "/OpenBK7231T_App/" "sdk/OpenBK7231N/apps/OpenBK7231N" cd sdk/OpenBK7231N/platforms/bk7231n/toolchain/../bk7231n_os && sh build.sh OpenBK7231N dev_20240206_044539 bk7231n APP_BIN_NAME=OpenBK7231N APP_VERSION=dev_20240206_044539 TARGET_PLATFORM=bk7231n USER_CMD= Start Compile system:Linux not is ci build make[2]: Entering directory '/OpenBK7231T_App/sdk/OpenBK7231N/platforms/bk7231n/bk7231n_os' fatal: No annotated tags can describe '244bdfe86a1dd4324038814f3ebb8ebb24117dfb'. However, there were unannotated tags: try --tags. make[3]: Entering directory '/OpenBK7231T_App/sdk/OpenBK7231N/platforms/bk7231n/bk7231n_os' echo prerequirement0 prerequirement0 =========================================================== Build OpenBK7231N =========================================================== echo prerequirement1 prerequirement1 mkdir -p Debug/obj mkdir -p Debug/bin build beken378/app/app_bk.o echo prerequirement2 prerequirement2 build beken378/app/ate_app.o build beken378/app/config/param_config.o build beken378/app/standalone-ap/sa_ap.o build beken378/app/standalone-station/sa_station.o build beken378/demo/ieee802_11_demo.o ... Done building OpenBeken for the following platforms: OpenBK7231N Find outputs in: ../output/dev_20240206_051229
Build artifacts:
~/projects/src/github.com/openshwprojects/OpenBK7231T_App/docker λ tree ../output/dev_20240206_051229/ ../output/dev_20240206_051229/ ├── OpenBK7231N_dev_20240206_051229.asm ├── OpenBK7231N_dev_20240206_051229.axf ├── OpenBK7231N_dev_20240206_051229.bin ├── OpenBK7231N_dev_20240206_051229.map ├── OpenBK7231N_dev_20240206_051229.rbl ├── OpenBK7231N_QIO_dev_20240206_051229.bin ├── OpenBK7231N_UA_dev_20240206_051229.bin └── OpenBK7231N_UG_dev_20240206_051229.bin 1 directory, 8 files
Flash new version:
~/projects/src/github.com/openshwprojects/OpenBK7231T_App/output λ cp dev_20240206_051229/OpenBK7231N_QIO_dev_20240206_051229.bin ~/projects/src/github.com/OpenBekenIOT/hid_download_py (.venv) ~/projects/src/github.com/OpenBekenIOT/hid_download_py λ uartprogram OpenBK7231N_QIO_dev_20240206_051229.bin -d /dev/ttyUSB0 -w -u -s 0x0 UartDownloader.... programm.... Write Successful: |##################################################|[ 15.3k/s]
Device preserves configuration after flashing, which is good, but… there is no obvious way to reset this configuration (why in the world have you not implemented such an obvious thing?)

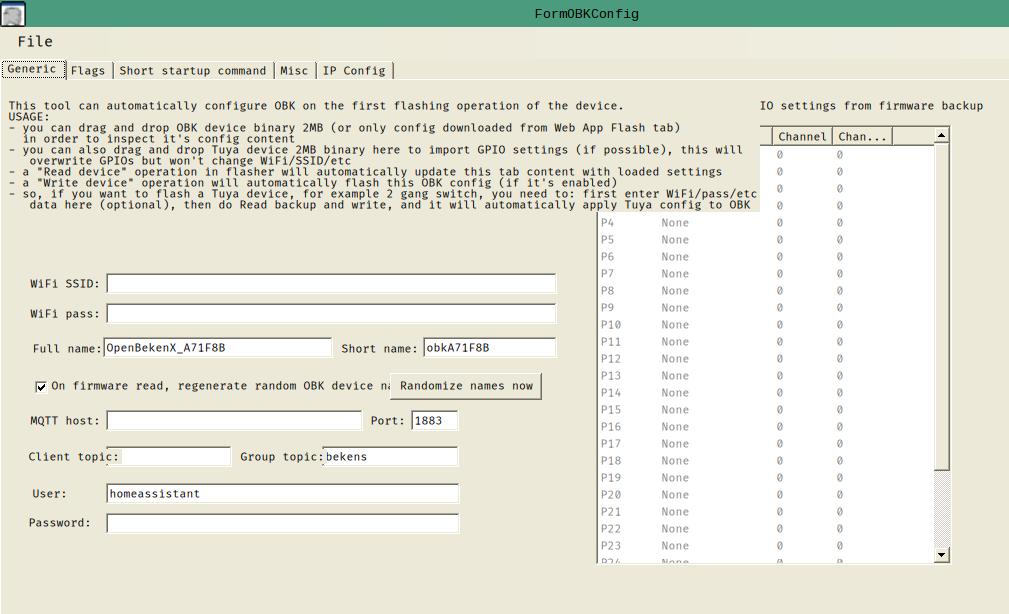

Let’s try reverting to GUI flasher, because it could somehow set this settings.
This doesn’t help. Such a horrible UX.
Ok, force default config:
diff --git src/new_cfg.c src/new_cfg.c index d89bb19d..6e61d2c5 100644 --- src/new_cfg.c +++ src/new_cfg.c @@ -726,6 +727,10 @@ void CFG_InitAndLoad() { addLogAdv(LOG_WARN, LOG_FEATURE_CFG, "CFG_InitAndLoad: Correct config has been loaded with %i changes count.",g_cfg.changeCounter); } + CFG_SetDefaultConfig(); + // mark as changed + g_cfg_pendingChanges ++; + // copy shortDeviceName to MQTT Client ID, set version=3 if (g_cfg.version<3) { addLogAdv(LOG_WARN, LOG_FEATURE_CFG, "CFG_InitAndLoad: Old config version found, updating to v3.");
And after this change I finally see device connected to my private network! (don’t forget to revert last change and flash original firmware)
God damn it, openbeken, why you can’t just be like Tasmota?! Wasted horrible amount of time solving such a usual thing.
configuration & MQTT
Here is minimal configuration which will setup this device as dimmer:
startDriver TuyaMCU tuyaMcu_setBaudRate 115200 SetFlag 31 1 logPort 1 loglevel 3 startDriver SSDP PowerSave 1 tuyaMcu_setDimmerRange 0 1000 setChannelType 20 toggle setChannelType 21 toggle setChannelType 22 dimmer setChannelType 23 dimmer linkTuyaMCUOutputToChannel 20 1 20 linkTuyaMCUOutputToChannel 21 1 21 linkTuyaMCUOutputToChannel 22 2 22 linkTuyaMCUOutputToChannel 23 2 23
MQTT support is available (see Mqtt* here).
Sample messages while triggering previously configured outputs (non RGB led strip):
$ mosquitto_sub -v -t 'OpenBK7231N_XXXXXXX/#' OpenBK7231N_XXXXXXX/connected online OpenBK7231N_XXXXXXX/22/get 42 OpenBK7231N_XXXXXXX/22/get 66 OpenBK7231N_XXXXXXX/22/get 90 OpenBK7231N_XXXXXXX/22/get 0 OpenBK7231N_XXXXXXX/22/get 5 OpenBK7231N_XXXXXXX/20/get 0 OpenBK7231N_XXXXXXX/20/get 1 OpenBK7231N_XXXXXXX/22/get 30 OpenBK7231N_XXXXXXX/22/get 100 OpenBK7231N_XXXXXXX/22/get 11 OpenBK7231N_XXXXXXX/20/get 0 OpenBK7231N_XXXXXXX/20/get 1 OpenBK7231N_XXXXXXX/22/get 31 OpenBK7231N_XXXXXXX/22/get 60 OpenBK7231N_XXXXXXX/22/get 9
Could be controlled using:
1&0are booleanon&off,90is percent value of brightness
$ mosquitto_pub -t 'OpenBK7231N_XXXXXXX/20/set' -m '1' $ mosquitto_pub -t 'OpenBK7231N_XXXXXXX/22/set' -m '90' $ mosquitto_pub -t 'OpenBK7231N_XXXXXXX/20/set' -m '0'
